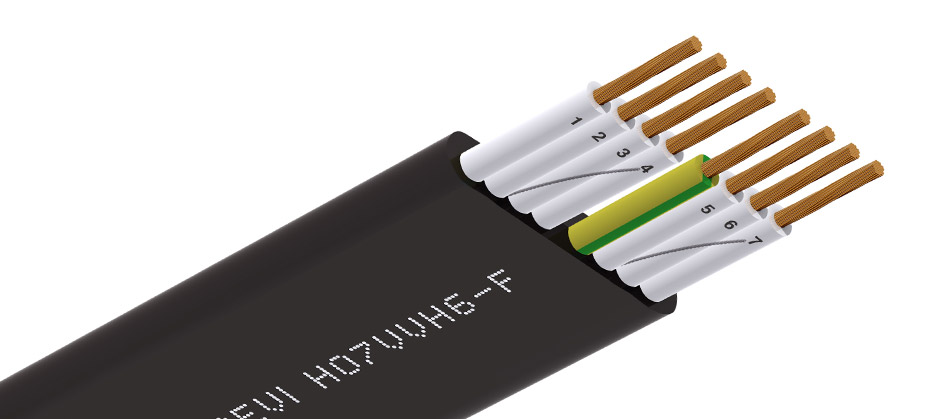

H07VVH6-F
Suspended Flexible Control Cable for maneuvering cranes.
INFORMATION
| Nº of conductors | 4 | ||||||
|---|---|---|---|---|---|---|---|
| Section mm2 | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 |
| Composition copper h x mm | 24x0.26 | 40x0.26 | 48x0.31 | 72x0.31 | 69x0.41 | 108x0.41 | 167x0.41 |
| Insulated conductor diameter mm | 3 | 3.50 | 4.10 | 4.80 | 6.05 | 7.25 | 8.85 |
| Colour conductors | Brown, A/V, Black, Grey | ||||||
| Resistencia max. electrical Ohm/Km | 13.3 | 7.98 | 4.95 | 3.3 | 1.91 | 1.21 | 0.78 |
| Dimension mm | 4.5x14.5 - 5.8x15.6 | 5.2x17.4 - 6.0x18.2 | 6.2x19.6 - 6.9x20.0 | 6.9x21.8 - 7.2x22.8 | 8.5x26.6 - 10.0x29.0 | 9.8x31.4 - 11.0x35.0 | 11.5x37.9 - 13.5x46.0 |
| Diameter flex. | 420 | 520 | |||||
| Suspensión elements | None | ||||||
| Test voltage | 2500 V | ||||||
| Nº of conductors | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 24 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section mm2 | 1.5 | 2.5 | 1.5 | 2.5 | 1.5 | 2.5 | 1.5 | 2.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Composition copper h x mm | 24x0.26 | 40x0.26 | 24x0.26 | 40x0.26 | 24x0.26 | 40x0.26 | 24x0.26 | 40x0.26 | 24x0.26 | 24x0.26 | 24x0.26 | 24x0.26 |
| Approx. Insulated conductor diameter mm | 3 | 3.50 | 3 | 3.50 | 3 | 3.50 | 3 | 3.50 | 3 | 3 | 3 | 3 |
| Colour conductors | white black numbers, green/yellow | |||||||||||
| Max. electrical resistance Ohm/Km | 13.3 | 7.98 | 13.3 | 7.98 | 13.3 | 7.98 | 13.3 | 7.98 | 13.3 | 13.3 | 13.3 | 13.3 |
| Dimension mm | 4.5x20.8 - 5.8x23 | 52x25.6 - 6.0x28.6 | 4.5x26.7 - 5.8x28.3 | 5.2x31.2 - 6.0x35 | 4.5x32 - 5.8x35 | 5.2x39.6 - 6.0x43.6 | 4.5x37.9 - 5.8x41.4 | 5.2x47.2 - 6.0x50.8 | 4.5x45.2 - 5.8x50.8 | 4.5x50.4 - 5.8x54 | 4.5x54.9 - 5.8x60.2 | 4.5x74.5 - 5.8x83 |
| Diameter flex. | 420 | |||||||||||
| Bending radius | 10 x Cable height | |||||||||||
| Suspension elements | None | |||||||||||
| Test voltage | 2500 V | |||||||||||
| Nº of conductors | 4 | 7 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Section mm2 | 35 | 50 | 70 | 95 | 2,5 | ||||
| Composition copper h x mm | 240x0,41 | 336x0,41 | 336x0,50 | 456x0,50 | 40x0,26 | ||||
| Insulated conductor diameter approx mm | 10,10 | 12,15 | 13,80 | 15,50 | 3,50 | ||||
| Colour conductors | Brown, A/V, Black, Grey | White black numbers, green/yellow | |||||||
| Max. electrical resistance Ohm/Km | 0,554 | 0,386 | 0,272 | 0,206 | 7,98 | ||||
| Dimension mm | 13.1x42.9 - 14.8x51 | 15x52.1 - 17x57 | 17.5x63 - 20x66.1 | 20x71 - 23x76 | 5.2x29.4 - 6.0x32.4 | ||||
| Diameter flex. mm | 520 | 420 | |||||||
| Bending radius | 10 x Cable height | ||||||||
| Suspension elements | None | ||||||||
| Test voltage | 2500 V | ||||||||
Features
Conductor
Flexible Cu class 5 according to UNE 60228. IEC 60228
Tension nominal
450 - 750V
Operating temperature
70ºC
Minimum temperature test
-15ºC
Bending radius
10 x Cable height
Travel speed
1.6 m/seg
Recommended suspension lenght
Suspension 35 m
Fixed 70 m
Color
Black
Insulation and sheating
PVC
Standard
UNE-EN 50214
UNE-EN 60332-1-2
IEC 60332-1-2 (Flame propagation)
IEC 60227-6
Applications
Flexible Cable suspended for maneuver control crane installations.
